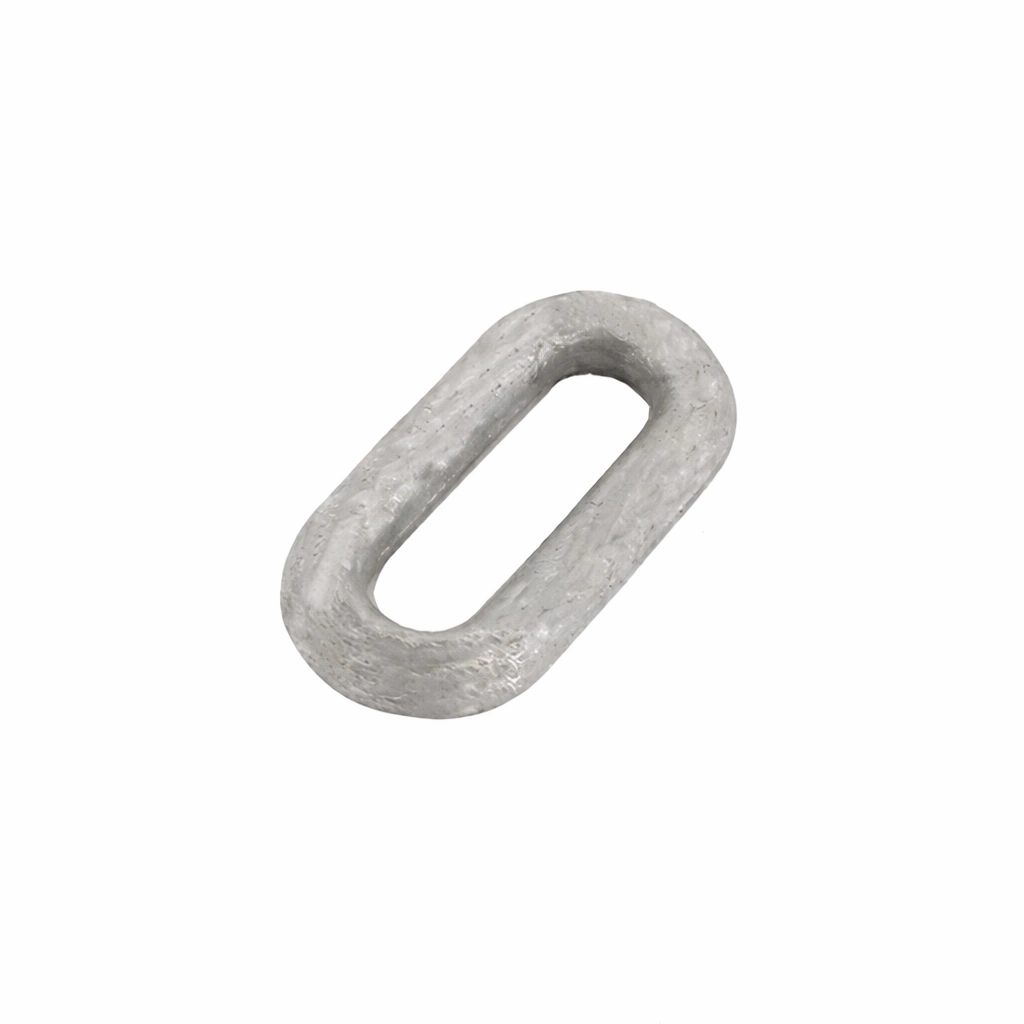

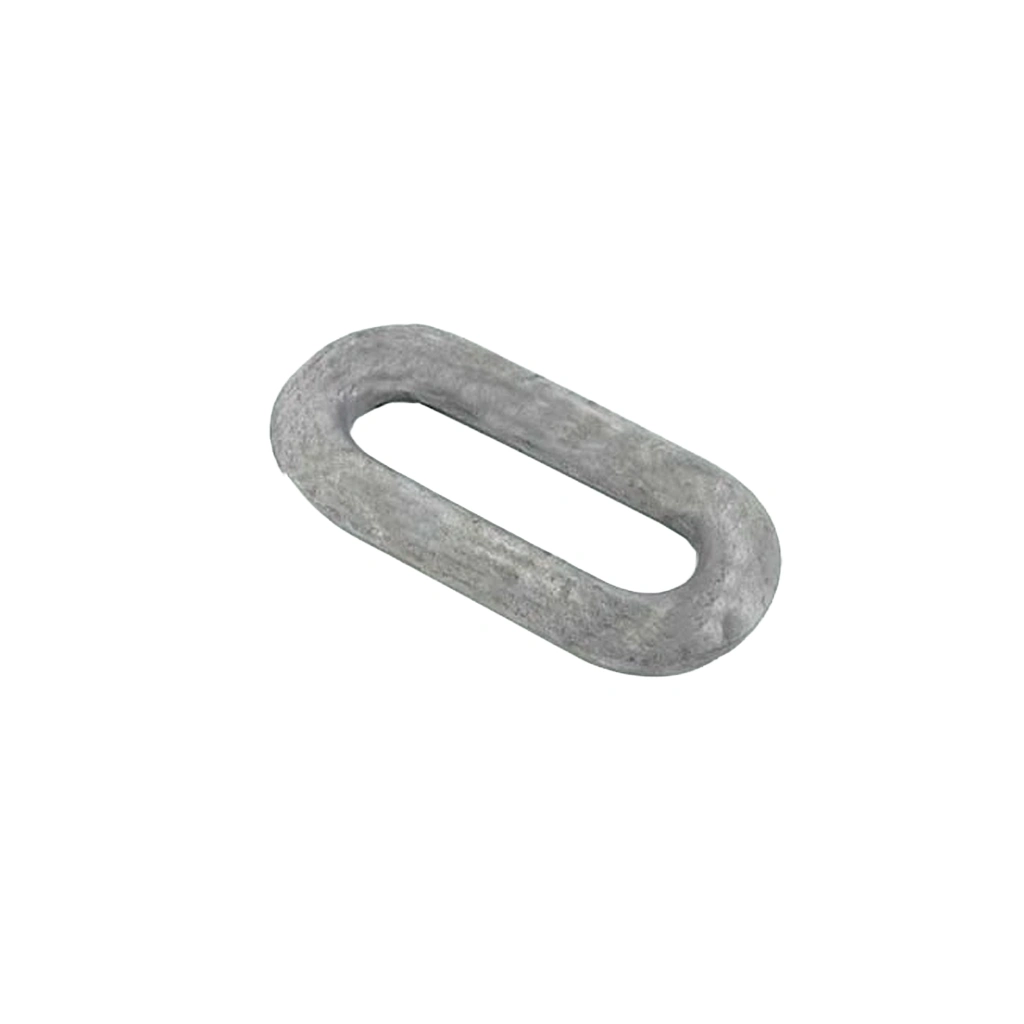

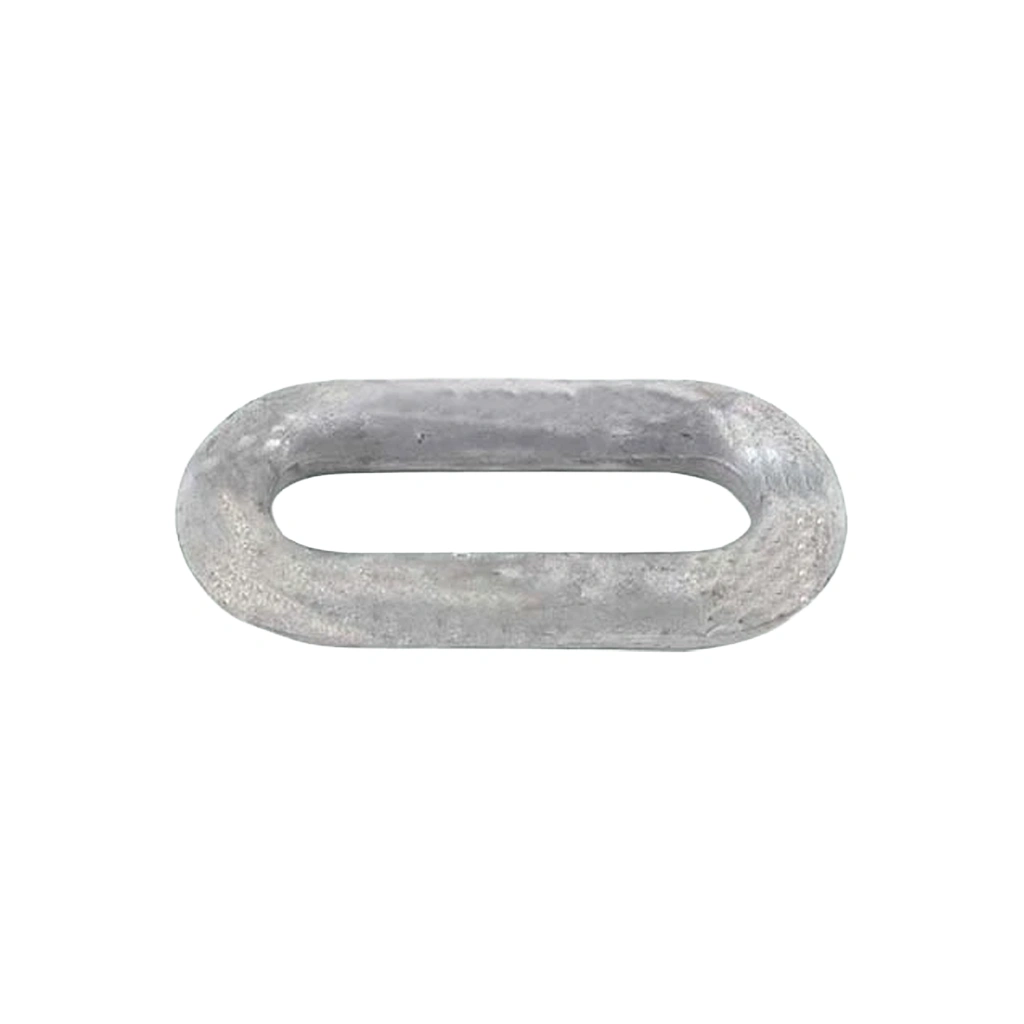

Steel Chain Link Product Overview
Constructed from forged, heat-treated Hot-Dip Galvanized (H.D.G) steel, this premium Steel Chain Link delivers exceptional ductility and structural strength.
- Functions as a highly reliable chain link steel hardware that absorbs dynamic loads effectively, making it secure during ice shedding or severe oscillations.
- Reduces the static stress on fiber optic cables while significantly improving their overall anti-vibration ability.
- Available in special steel variants tailored for environments where extreme low-temperature dynamic stresses occur.
- Inhibits the dynamic stress of wind vibration to guarantee higher safety performance.
Steel Chain Link Key Features
Integrating this Steel Chain Link into your grid ensures a resilient installation, fully supported by flexible B2B procurement terms:
- Weather Endurance: This galvanized steel chain is highly corrosion-resistant, ensuring a long operational lifespan in harsh outdoor conditions.
- Certified Manufacturing: Produced under a strict quality control plan within ISO 9001, ISO 14001, and ISO 18001 standard facilities.
- Order Flexibility: Zero Minimum Order Quantity (MOQ) on initial purchases, and a 100-piece threshold for subsequent orders. Free samples are available (buyer covers freight).
- Project Readiness: Delivers low factory pricing, fast quotations, dependable after-sale service, OEM availability, and complete tender documents ready for submission.
Steel Chain Link Applications
Designed strictly for demanding overhead mechanical assemblies, this Steel Chain Link provides essential structural linkage. It is used strictly for:
- Connecting insulators safely to transmission towers and overhead conductors.
- Forming secure tensioning string groups utilizing overhanging wire clips and protective fittings.
- Safeguarding sensitive networks where a reliable galvanised steel chain is required against continuous wind vibration.
Steel Chain Link Technical Specifications
Review the precise material breakdown and dimensional failure loads for the PH series below to ensure exact compatibility with your tensioning groups.
Material & Design Data
| Component / Parameter | Specification Details |
|---|---|
| Hardware Type | Connecting Fitting / PH Extended Chain Link |
| Main Material | Hot-Dip Galvanized (H.D.G) Steel |
| Manufacturing Process | Forged & Heat-Treated |
| Key Properties | High Ductility, Corrosion Resistant, Anti-Vibration |
| Factory Certifications | ISO 9001, ISO 14001, ISO 18001 |
Dimensional & Failure Load Parameter List
| Catalog No. | Main Dimensions (mm) | Specified Failure Load (kN) | ||
|---|---|---|---|---|
| C | d | L | ||
| PH-7 | 20 | 16 | 80 | 70 |
| PH-10 | 22 | 18 | 100 | 100 |
| PH-12 | 24 | 20 | 120 | 120 |
| PH-16 | 26 | 22 | 140 | 160 |
| PH-21 | 30 | 24 | 160 | 210 |
| PH-25 | 34 | 26 | 160 | 250 |
| PH-30 | 38 | 30 | 180 | 300 |
| PH-0780 | 20 | 16 | 80 | 70 |
| PH-10100 | 22 | 16 | 100 | 100 |
| PH-12120 | 24 | 18 | 120 | 120 |
| PH-16120 | 26 | 20 | 120 | 160 |
| PH-21130 | 26 | 20 | 130 | 210 |
| PH-25120 | 32 | 24 | 120 | 250 |
| PH-32140 | 36 | 28 | 140 | 320 |
