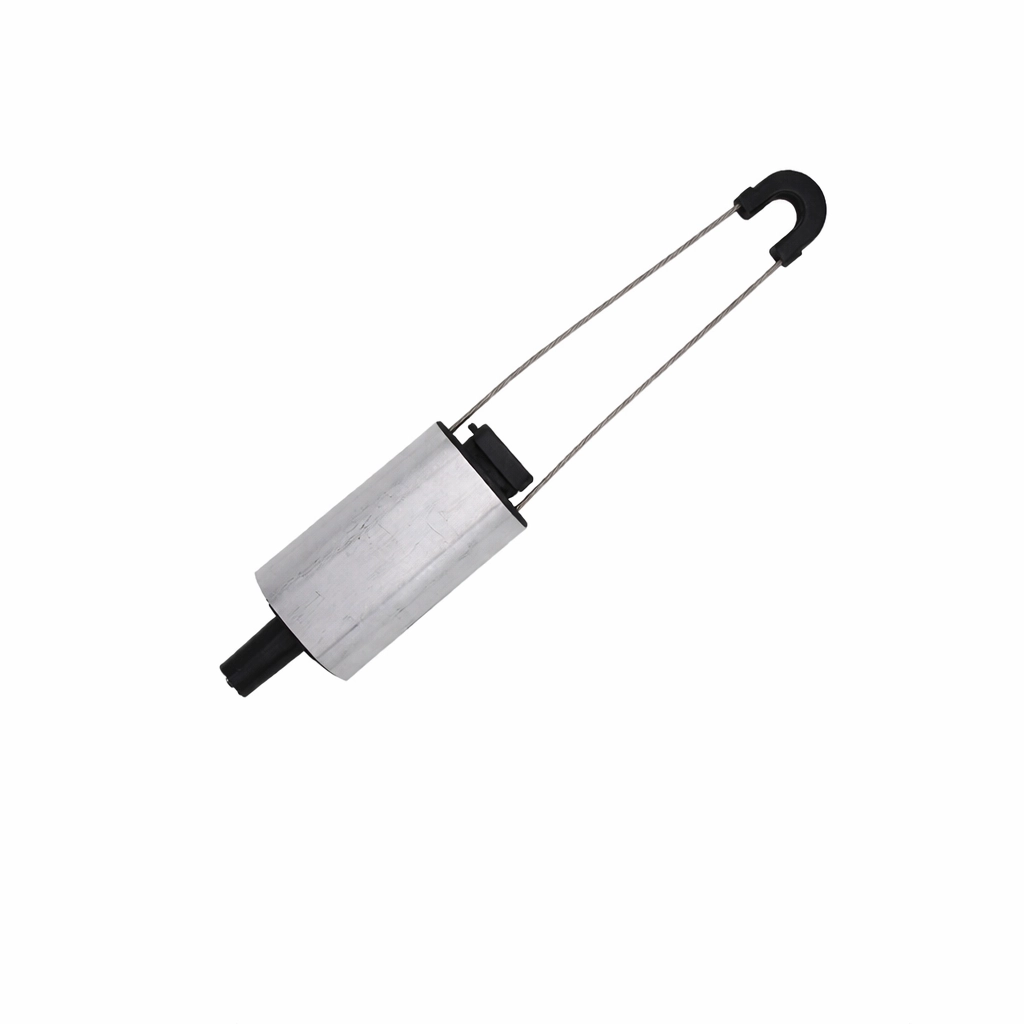

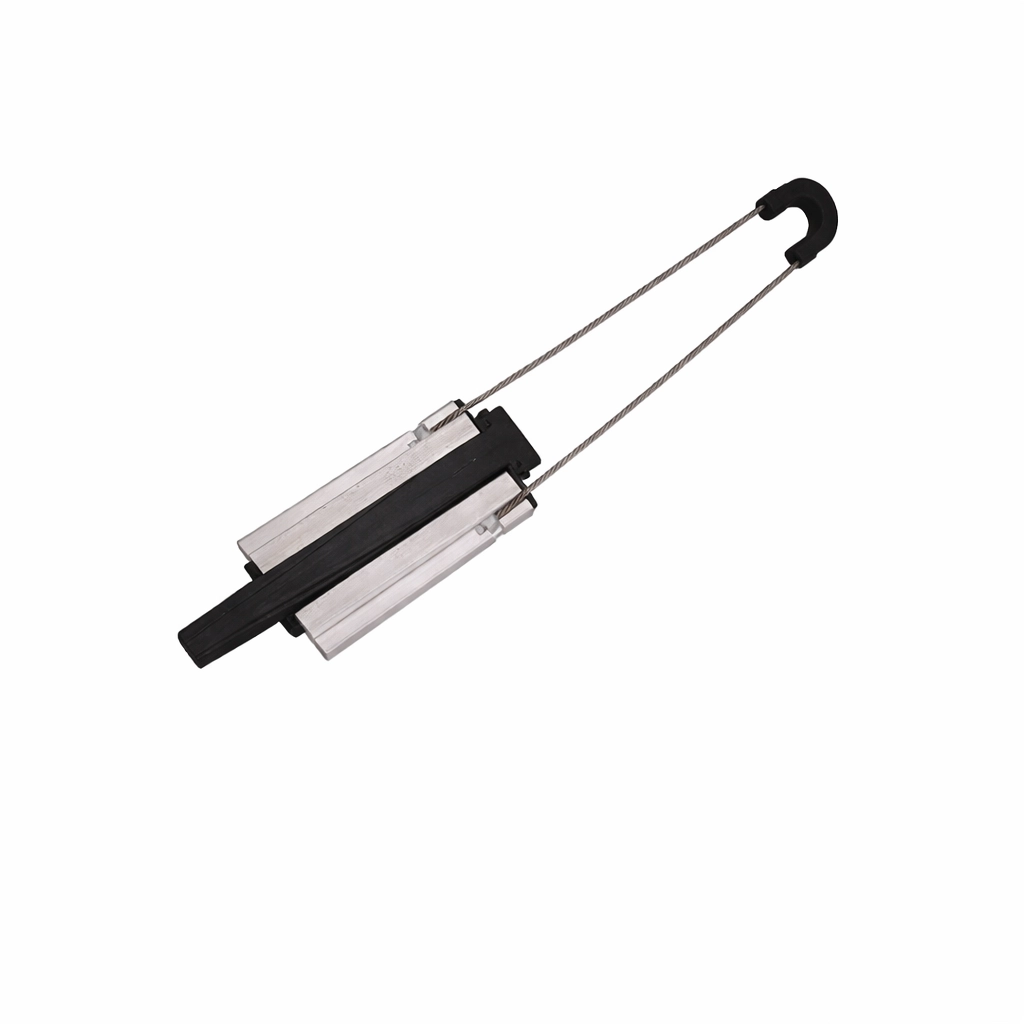

Service Wedge Clamp JBG-1 Product Overview:
Functioning as a critical structural node for insulated distribution grids, the service wedge clamp efficiently increases self-resistance against mechanical stress. The JBG-1 model is designed with technical precision to ensure stable alignment and long-term hardware reliability through the following mechanisms:
- Friction Management: Features a specialized aluminum clamping block purposefully designed to drastically reduce the wear degree on the cable’s outer insulation.
- Operational Stability: Allows utility engineers and procurement teams to maintain exact cable tension without sagging across complex aerial distributions.
- Material Endurance: Intelligently combines metal strength with PA66 flexibility to withstand harsh environmental conditions.
Key Features & Benefits of the Service Wedge Clamp:
Integrating the JBG-1 service wedge clamp into your infrastructure brings measurable technical advantages for overhead networks. The specific material formulation targets direct structural security:
- Certified Failure Load: Withstands up to 10KN of mechanical tension, establishing a highly secure anchor point for heavy cables.
- Broad Sizing Range: Seamlessly grips varying wire profiles, actively accommodating 10-13mm² and 35-70mm² configurations.
- Advanced Wear Resistance: The built-in aluminum block minimizes surface abrasion, protecting insulated cables over extended operational periods.
- Environmental Durability: Constructed from Aluminum Alloy and PA66, ensuring the service wedge clamp resists corrosion in harsh outdoor climates.
Applications & Use Cases for Service Wedge Clamp:
The weather-resistant build makes the JBG-1 model highly suitable for versatile electrical expansions. Whenever contractors require dependable wedge clamps aerial cable installations, this specific service wedge clamp guarantees stable mechanical grip across diverse and demanding environments:
- Low-voltage distribution networks and localized residential building electrification.
- High-altitude cable setups requiring sustained mechanical tension against wind.
- Coal chemical industry sectors where anti-corrosive fastening materials are mandatory.
- Heavy-duty factory manufacturing facilities deploying localized power drops.
Service Wedge Clamp Technical Specifications:
Evaluate the precise mechanical parameters below to confirm that the JBG-1 service wedge clamp aligns perfectly with your B2B project requirements.
| Parameter | Specification |
|---|---|
| Material Construction | Aluminum Alloy / PA66 / Metal |
| Conductor Specification | 10-13mm² / 35-70mm² |
| Failure Load | 10KN |
