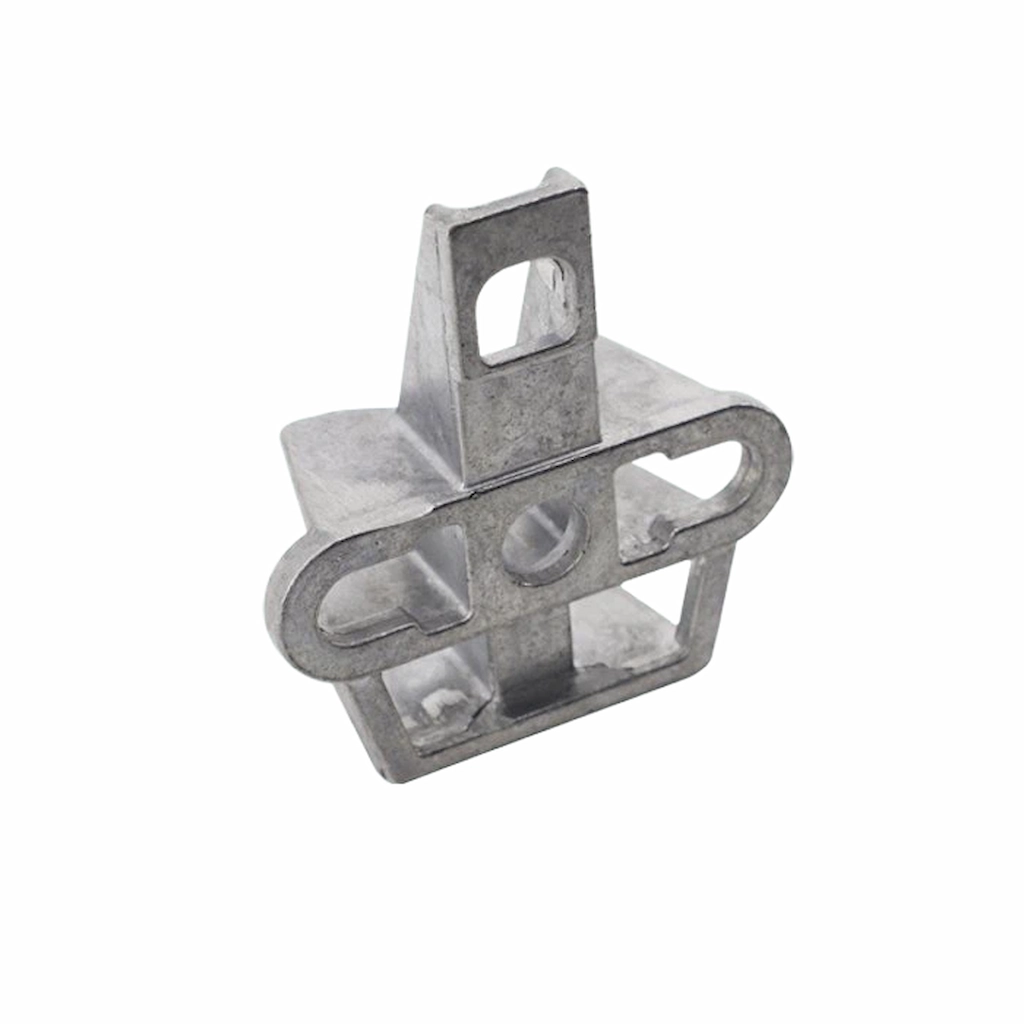

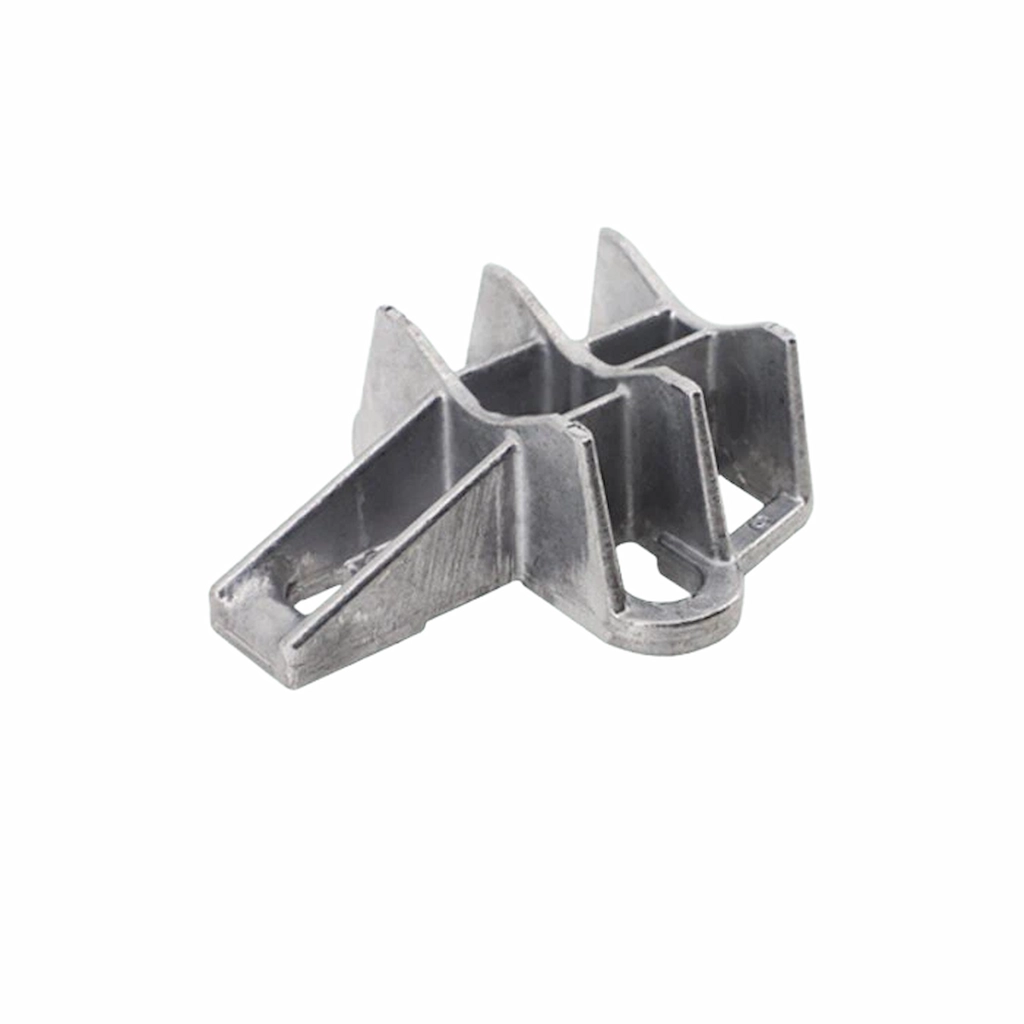

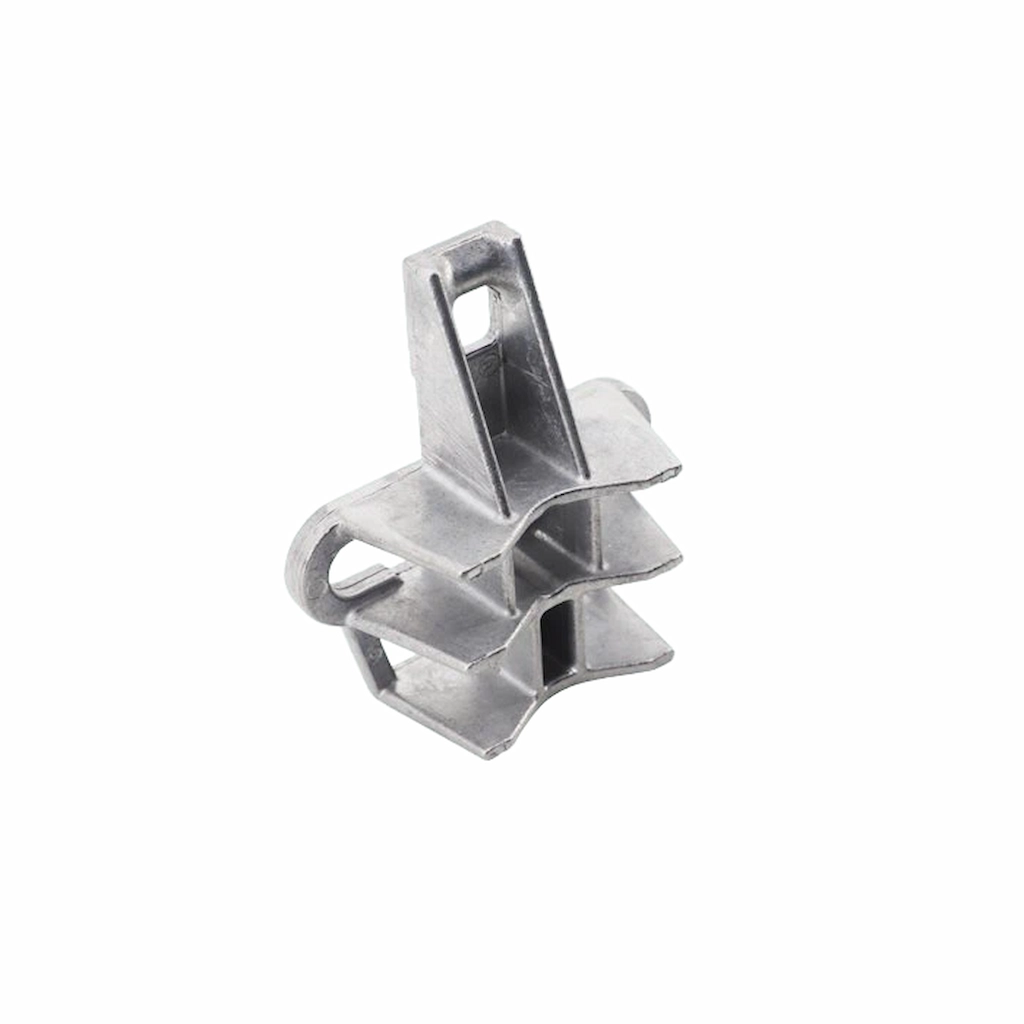

Universal pole bracket Overview:
This highly versatile anchoring hardware is specifically engineered to function flawlessly as an anchor, stay, or drop wire bracket across complex networks.
Leverage this premium universal pole bracket upb to ensure absolute structural stability in all field scenarios:
- Fully compatible and standardly utilized as essential ABC fittings and ADSS fittings.
- Features a universal mounting method effectively covering all possible overhead installation situations.
Key Features & Benefits:
Every specification is strictly optimized to maximize field durability and significantly simplify the setup process for line contractors.
Upgrade your infrastructure reliably with these heavily tested operational advantages:
- Exceptional Material Strength: Forged from premium high-strength aluminium alloy, ensuring long-term resistance against immense structural tension.
- Advanced Corrosion Resistance: Treated with a professional sandblasting or polishing finish to eliminate environmental degradation completely.
- Highly Versatile Mounting: Engineered with multiple mounting locations and an 18.5mm bolt hole to accommodate rapid, universal installations.
- Optimized Load Distribution: Safely delivers a maximum mechanical strength (F3) of up to 9.3kN while maintaining a highly efficient 0.25kg weight.
Applications & Use Cases for universal pole bracket:
Deploy this specialized structural component to establish highly secure and lasting connections across diverse power and telecom grids.
This heavy-duty universal pole bracket upb serves as the definitive choice for the following critical utility tasks:
- Securing messenger anchor clamps safely on heavy-duty overhead transmission poles.
- Functioning reliably as a highly durable stay bracket within complex electrical line configurations.
- Operating flawlessly as a drop wire bracket for demanding residential and industrial networks.
- Providing a standardized, unified anchoring point specifically for ABC and ADSS accessory integrations.
Technical Specifications:
Review the exact mechanical strength ratings and physical dimensions below to guarantee perfect compatibility with your upcoming infrastructure requirements.
| Material and Construction | |
| Material | Aluminium alloy |
| Color | silver |
| Finish | Sand blasting or polishing |
| Mechanical Strength (Max.) | |
| F1 (LBS/kN) | 450 / 2.05 |
| F2 (LBS/kN) | 1100 / 5.0 |
| F3 (LBS/kN) | 2050 / 9.3 |
| F4 (LBS/kN) | 650 / 3.0 |
| F5 (LBS/kN) | 1100 / 5.0 |
| Dimensions and Weight | |
| Height (MM) | 120 |
| Width (MM) | 113 |
| Depth (MM) | 45 |
| Bolt hole (MM) | 18.5 |
| Weigth (KGS) | 0.25 |

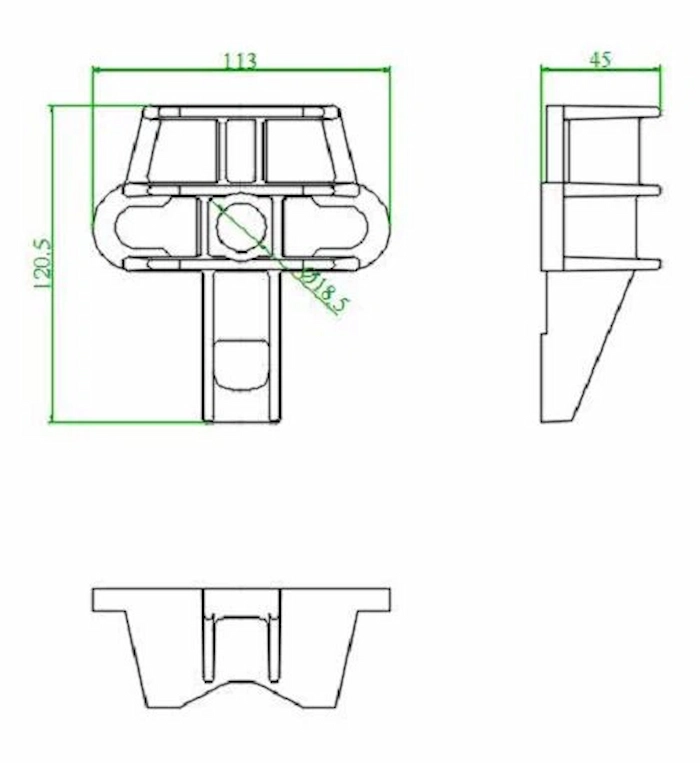

STAY BRACKET DIMENSION:

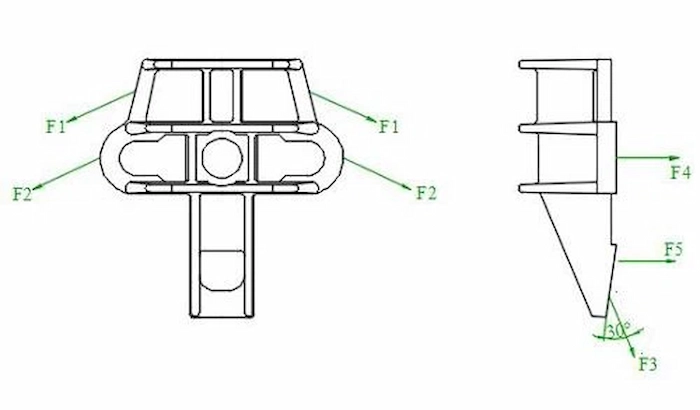

ABC FITTINGS MECHANICAL STRENFTH:
