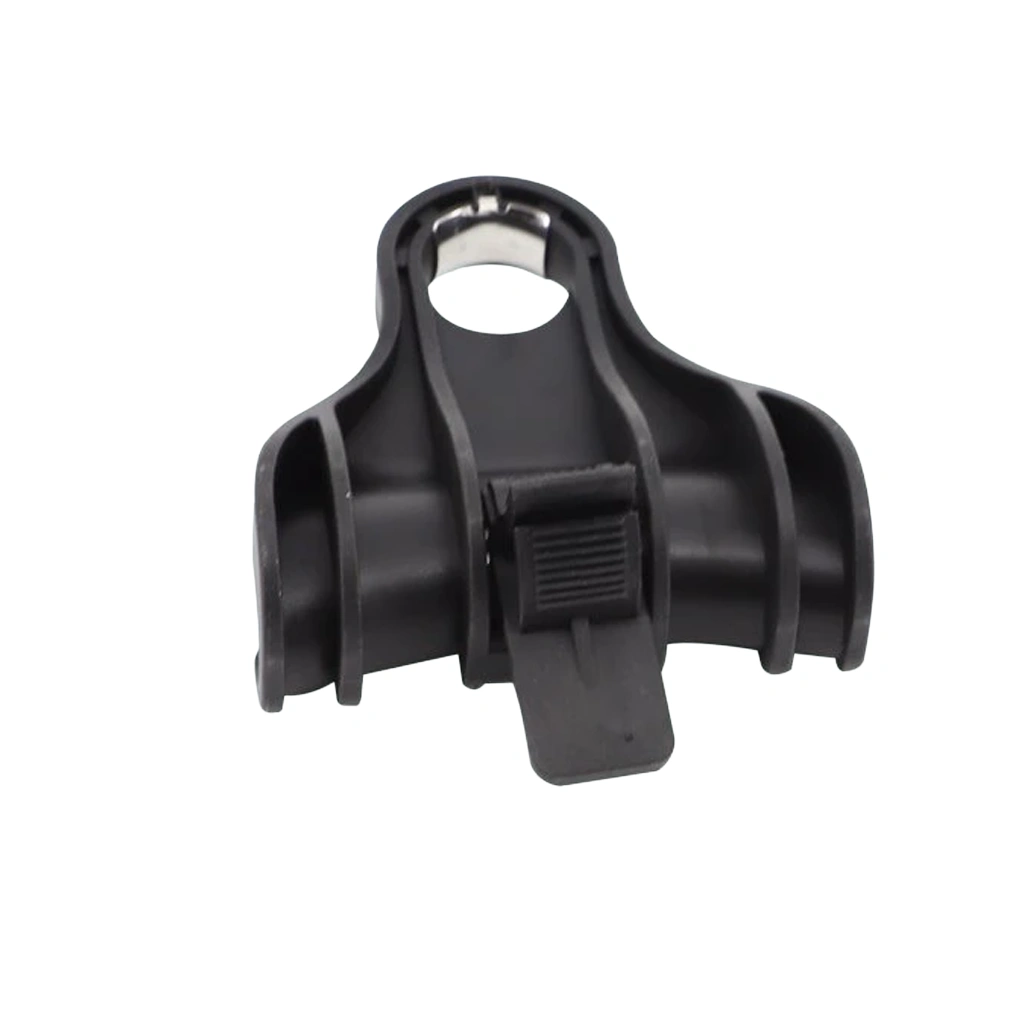

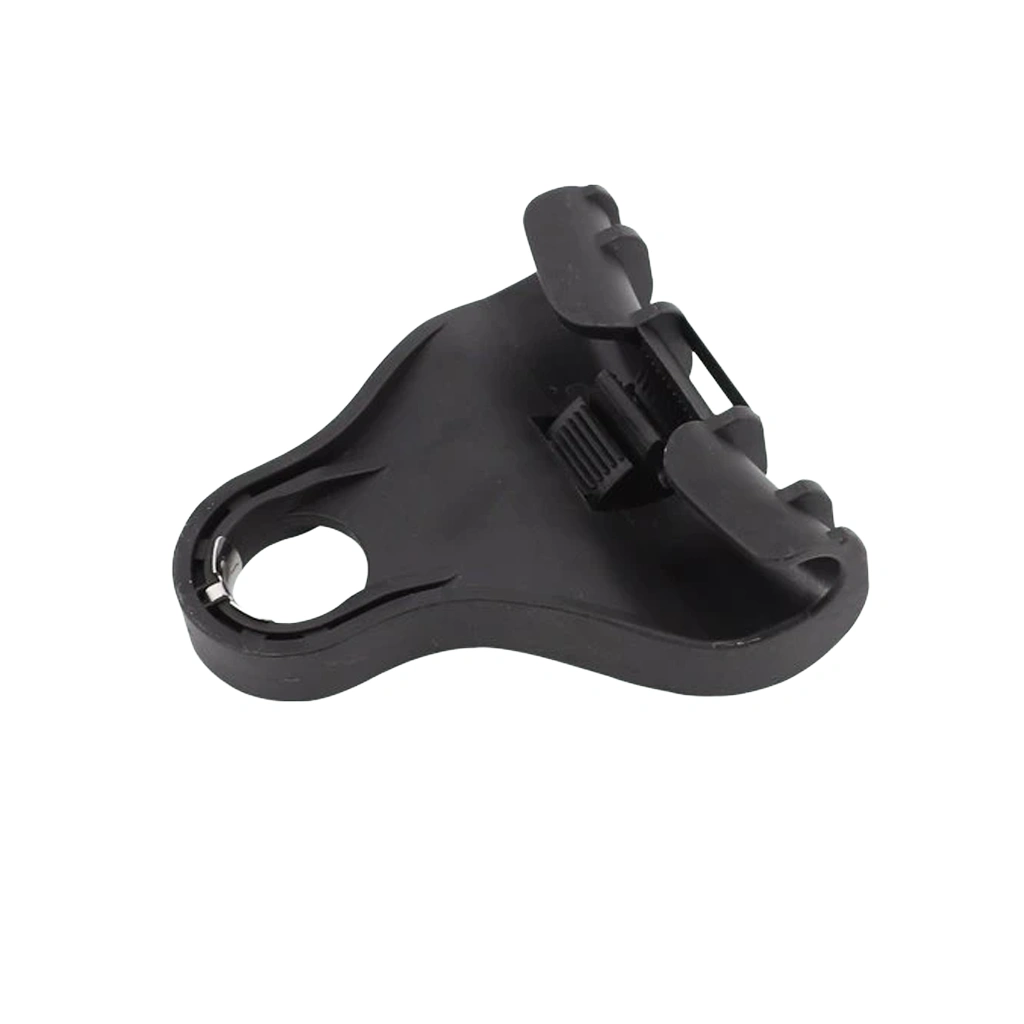

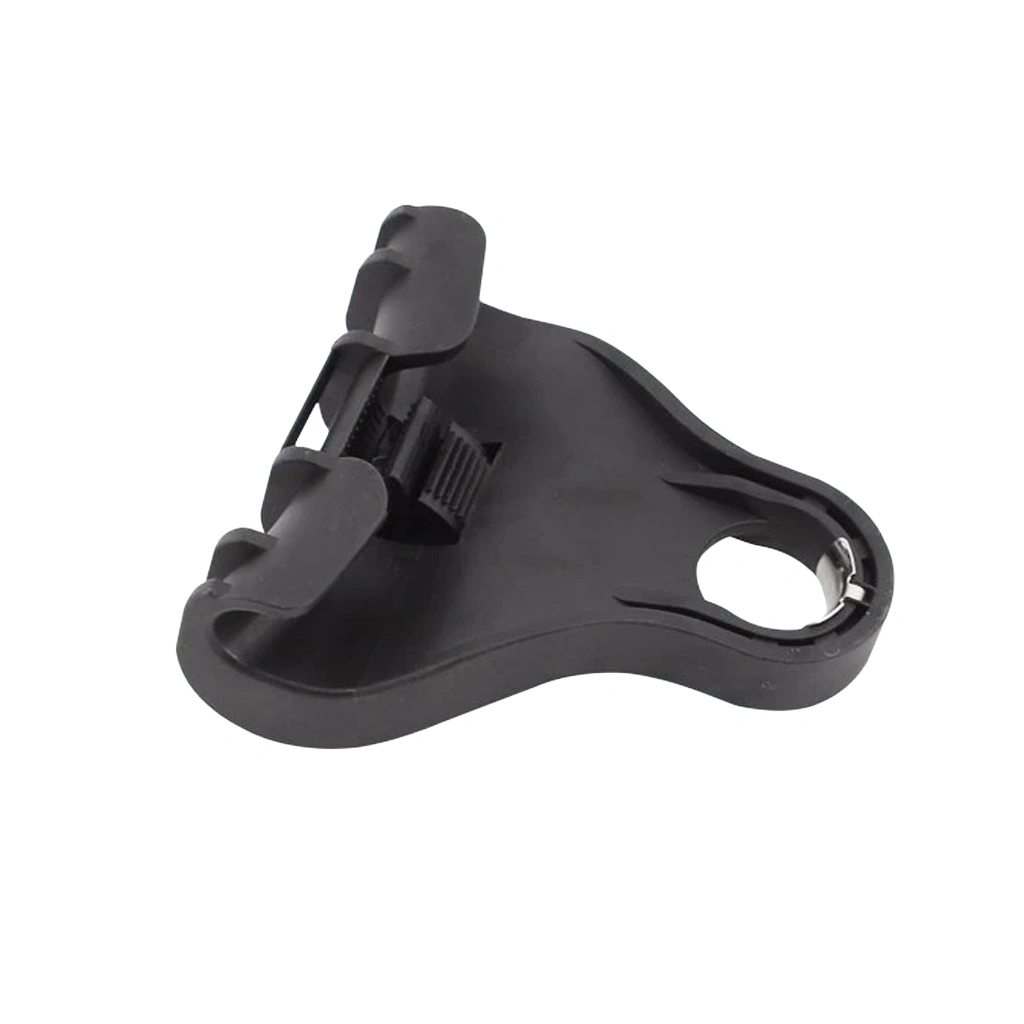

Plastic ABC Suspension Clamp Product Overview
This Plastic ABC Suspension Clamp ensures an exceptional mechanical hold while fully protecting the sheath of the conductor’s core from any damage.
- Constructed entirely from UV-resistant fiberglass-reinforced thermoplastic for maximum clamp strength and durability.
- Consists of a robust insulated body paired with an insulating pressure shoe.
- Designed to strictly accommodate an application angle of ≤50°.
- Fully compliant with NF C33-040 design standards and tested under BS EN 50483-3.
Plastic ABC Suspension Clamp Key Features
Integrating this Plastic ABC Suspension Clamp into your infrastructure guarantees a fast installation backed by highly efficient B2B procurement terms:
- Toolless Installation: Features a notched knee-type locking and clamping system, allowing for quick and secure on-site assembly without tools.
- Integrated Design: Manufactured with a one-piece overall product design, ensuring no individual parts will be lost during transportation or handling.
- Order Flexibility: Zero Minimum Order Quantity (MOQ) on initial purchases, and a 100-piece threshold for subsequent orders. Free samples are provided (buyer covers freight).
- Project Readiness: Offers low factory pricing, fast quotations, dependable after-sale service, OEM customization, and complete tender documents ready for submission.
Plastic ABC Suspension Clamp Applications
Built specifically for secure aerial cable bundling, this Plastic ABC Suspension Clamp provides crucial structural mounting solutions. It is used strictly for:
- Mounting insulated phase conductors securely on utility supports or facades.
- Working in conjunction with insulation piercing connectors to provide service connections by safely tapping the mainline.
Plastic ABC Suspension Clamp Technical Specifications
Review the precise material breakdown and mechanical parameters for the Plastic ABC Suspension Clamp below to ensure exact compatibility with your network lines.
Material & Design Data
| Component / Parameter | Specification Details |
|---|---|
| Hardware Type | Fusible Suspension Clamp (PS25/120-MF) |
| Body & Shoe Material | UV Resistance Fiberglass Reinforced Thermoplastic |
| Bolt Material | UV Resistance Fiberglass Reinforced Thermoplastic |
| Application Angle | ≤ 50° |
| Cable Diameter Range | 8.5 mm – 16 mm |
| Cable Cross Section Range | 25 mm² – 95 mm² |
| Design Standards | NF C33-040 |
| Testing Standard | BS EN 50483-3 |
Mechanical Strength & Packaging Parameters
| Mechanical Parameter | Force Rating | Packaging Details |
|---|---|---|
| Bearing Force (TP) | 5.2 kN / 520 daN | Qty / Carton: 100 pcs |
| Tensile Force Threshold (TS) | 6.5 kN / 650 daN | Carton Size: 375(L) × 385(W) × 295(H) mm |
| Rupture Threshold (TM) | 9 kN / 900 daN | Gross Weight: 17 kgs |
